In some cases accepted everyday construct information can be inappropriate and the designer needs to consider an alternative way forward. Thermal bridging around window and door openings is easily avoided by integrating an insulated more detailed. The reveal is closed, damp is avoided from penetrating, and the plan is thermally insulated. In some cases neglected is the degree by which an outside skin will saturate and get worse the heat loss course. This challenges the intended thermal wellbeing around an opening and significantly impacts a common building and construction information.
Whenever a masonry skin ends up being saturated with water its conductivity increases. Will a reveal detail that is partially compliant stay so when the structure is saturated following storm-driven rain? Think about the reveals of a cavity wall door opening. They can be closed either typically utilizing DPC, or by using a cavity better. Most construction authorities/certificates describe such vertical closing terminating listed below the sill into the cavity, so any gravitating water can safely discharge out of harm’s method.

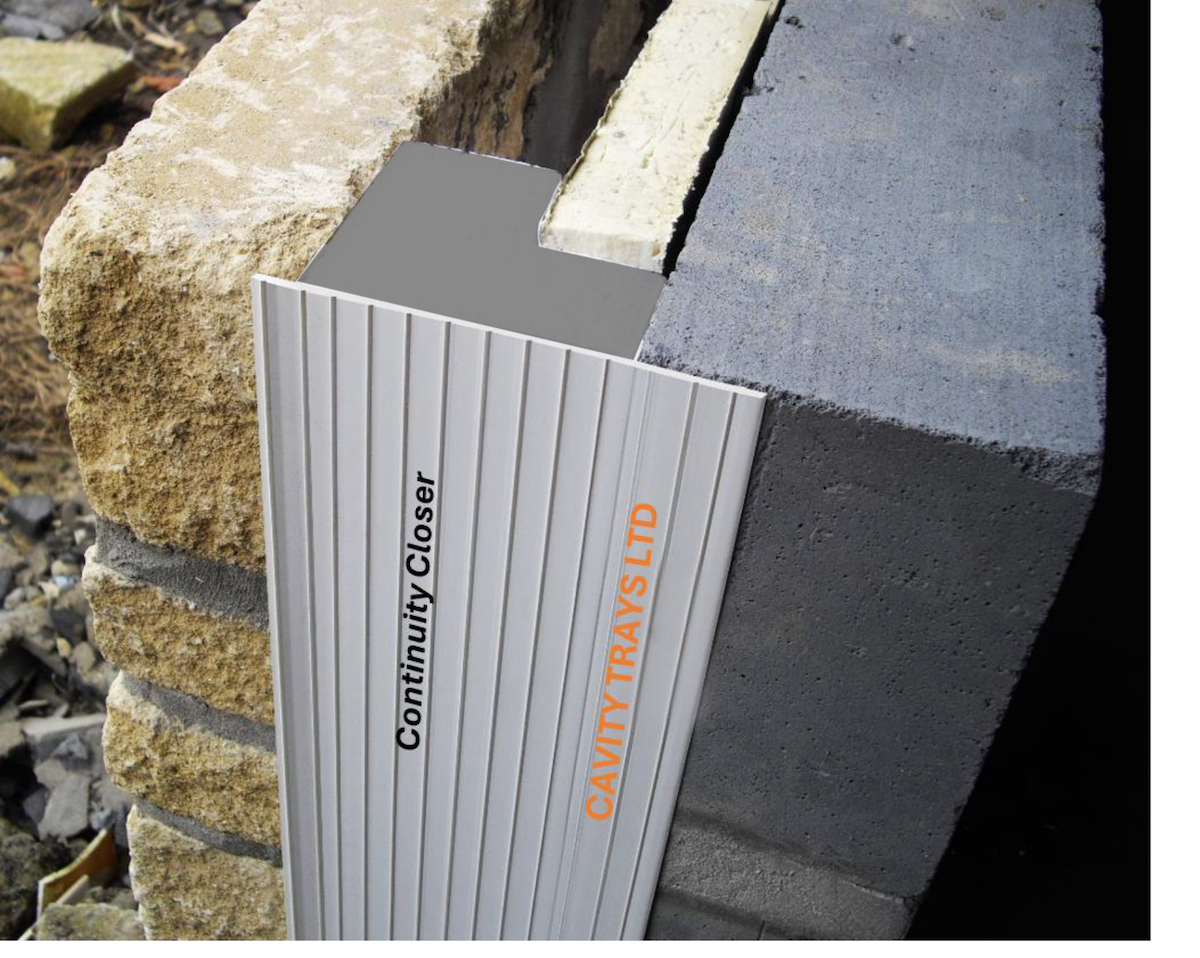

If one takes a look at Part C of the Structure Laws page 37, section 5.32 states closers must have fins. These are upon the closing face and interrupt capillary ingress, directing water to gravitationally drain, so it discharges at the bottom of the closer– thus the qualification regarding the terminating level. The plan deals with door openings on the ground flooring, as gravitating water can securely downwardly release. But when not at ground level, water can feed into whatever is listed below.
If the external door opening is onto a terrace, terrace or change of level, then below there is frequently accommodation. Constructing so that the gravitating water discharging at sill level is securely managed and exits the building and construction rather than permeates downwardly into it, is important. One technique is to integrate a preformed tray that incorporates with any surrounding horizontal intersection protection and additionally is formed to get and accommodate the vertical closing medium. Draining water is then fed into the protective tray and can not ingress the structure below.
Going back to the subject of external skin thermal conductivity, it is constantly variable and influenced by temperature, density and notably moisture material. When a material ends up being wet, the air enclosures/fissures fill with water. A dry brick may have a specific mass of 1600-1900 kg/m ³ and thermal conductivity of 0.6-0.7 W/mK, however the exact same brick when wet can have a thermal conductivity of 0.9-1.2 W/mK– an increase in conductivity approaching 100 percent. This must be kept in mind when identifying the optimal reveal closing plan and optimal water penetration security. Both being needed to preserve long term thermal and protective compliancy of the building envelope.
Cavity Trays Ltd is based in Somerset and has a tested performance history being the long-established cavity tray company in the UK. It manufactures an extensive series of construction services for cavity walls.
