The lethal partial collapse of a condominium structure in Surfside, FL, was rooted in serious design and building flaws dating all the way back to 1981, a federal probe has revealed.A total of 98
people passed away when the Champlain Towers South apartment collapsed on June 24, 2021, making the tragedy among the worst structural failures in U.S. history.Now, detectives with the National Institute of Standards and Innovation( NIST)state that the progressive failures actually began in early June 2021, three weeks before the final collapse, stemming from decades of deterioration and defects going back to the structure’s building. “When constructing structures are developed and developed to required codes
and requirements, they have margins against failure, implying they should be able to support far more load than they are anticipated to bear,”stated Judith Mitrani-Reiser, co-lead of the NIST examination.”In the case of Champlain Towers South, nevertheless, these margins against failure were too narrow from the start.”According to the examination, 2 critical connections in between the underground parking garage columns and the swimming pool deck piece suffered a” punching shear failure “– a structural failure where supporting columns pierce directly up through a cracking concrete floor.An illustration demonstrates how forces lowering on a steel-reinforced concrete piece can cause it to flex and split around a supporting column, deteriorating the connection holding the piece in location up until it eventually stops working. Professionals figured out that this kind of” punching shear failure”at 2 columns in the garage under the swimming pool deck slab in early June 2021 led to the June 24, 2021, partial collapse of the Champlain Towers South building.NIST Over the following 3 weeks, these preliminary failures triggered a sluggish, invisible chain reaction. As the pool deck split and moved, structural
weight redistributed to nearby slab-column connections that were totally unequipped to handle the moving load.On June 24, 2021, the structural stress reached a catastrophic breaking point, the investigation found. The pool deck piece unseated from a supporting wall, sagged further, and violently
ripped far from the middle area of the property tower. This sudden rupture compromised two foundational connections holding up the structure itself, setting off a rapid, progressive collapse that pancaked the middle and eastern portions of the 12-story high-rise. The investigation discovered that the structure was unable to deal with the additional loads needed by normal style codes, turning the single point of failure into a deadly catastrophe.Investigators attributed the dangerously low safety margins to 2 main factors: extreme discrepancies in the structure’s original 1981 design from the age’s building codes, and more inconsistencies between the architectural illustrations and the actual

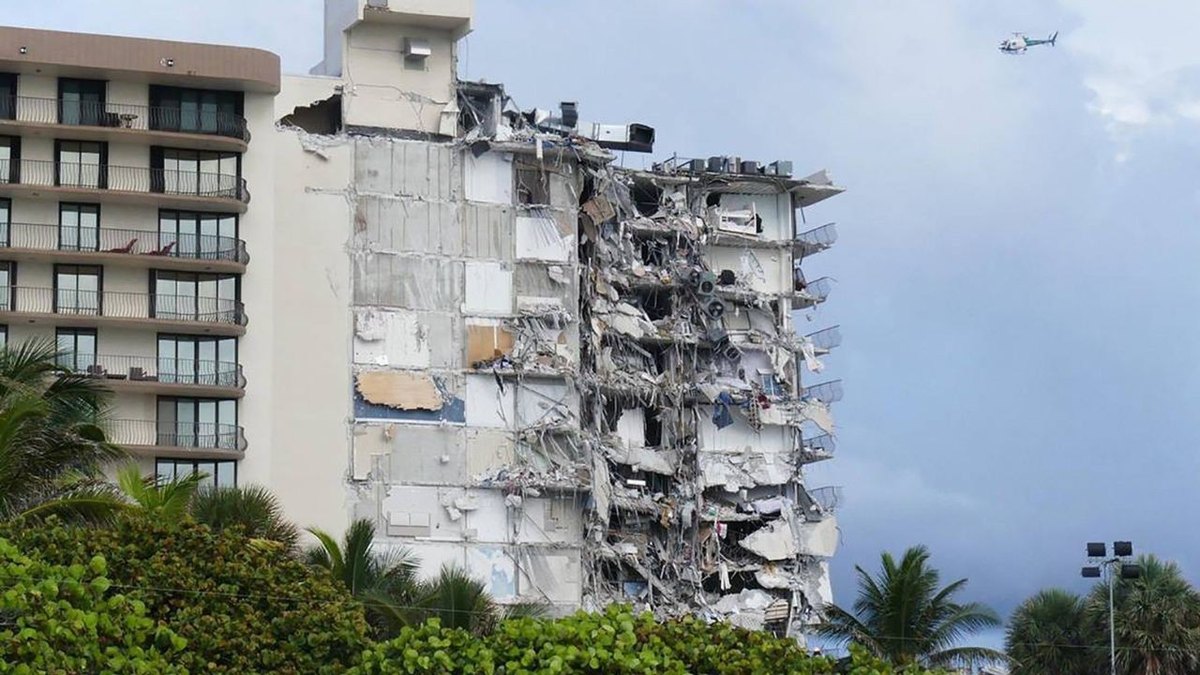

building and construction. These fundamental weak points were intensified over four years by later adjustments to the pool deck and long-lasting deterioration brought on by saltwater corrosion.A total of 98 people died when the Champlain Towers South condo collapsed on June 24, 2021, making the tragedy among the
worst structural failures in U.S. history.Getty Images The extensive forensic examination methodically examined 2 dozen possible triggers. By examining physical evidence, carrying out survivor interviews, and producing innovative computer system simulations, NIST formally eliminated several long-suspected perpetrators. Professionals validated that vibrations from neighboring building, sinkholes, foundation settling, and unexpected overloads from a concurrent roof job did not cause the collapse.The multidisciplinary effort united specialists in forensic chemistry, materials science, and structural engineering, who even recreated the concrete used in the structure to accurately
evaluate its strength. The findings mark a mournful coda to among the deadliest structural failures in U.S. history, explaining how a structure might stand for 40 years and then suddenly stop working without an
immediate external trigger.NIST will now concentrate on finalizing its report, which will serve as a road map for upgrading nationwide building codes, building and construction requirements, and evaluation practices.”We value everybody who has actually helped with
this work, including the survivors and the families of those who were lost,”said investigation co-lead Glenn Bell.”With their invaluable input, this effort will help make other buildings more secure, help prevent tragedies like this from taking place again, and assist honor the lives of the Champlain Towers South victims.”
